Hydraulic Symbol
Description
A screw-in, cartridge-style, direct-acting, poppet-type, hydraulic relief valve intended for use as a pressure limiting device for common hydraulic circuit protection.
Operation
The valve prevents flow from port 1 to port 2 until the set crack pressure at port 1 is achieved. The poppet then unseats, allowing flow from port 1 to port 2, protecting the circuit from over pressurization.
Technical Data
| Operating Pressure | 350 bar (5000 psi) |
|---|---|
| Flow | See performance chart |
| Cavity | T10-2B |
| Internal Leakage | 0.25 cc/minute (5 drops/minute) max. to 80% of nominal setting |
| Temperature | -40°C to 120°C with standard Buna seals |

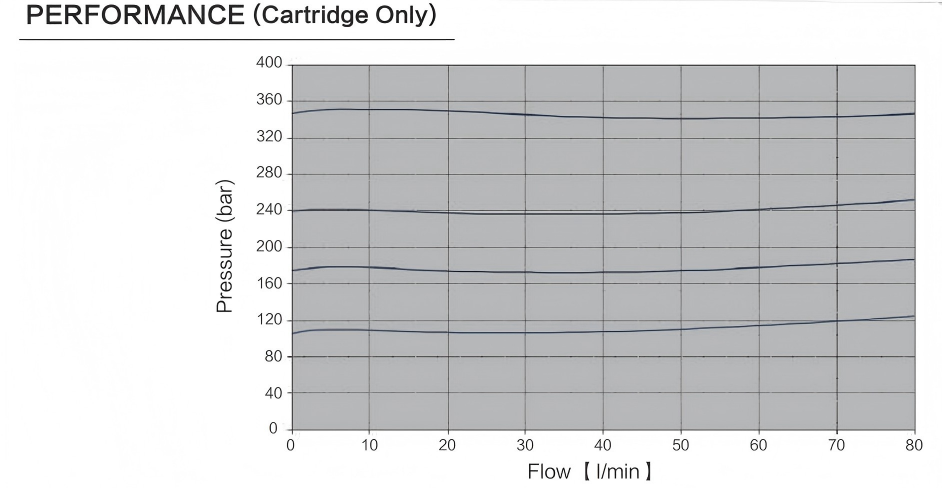

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

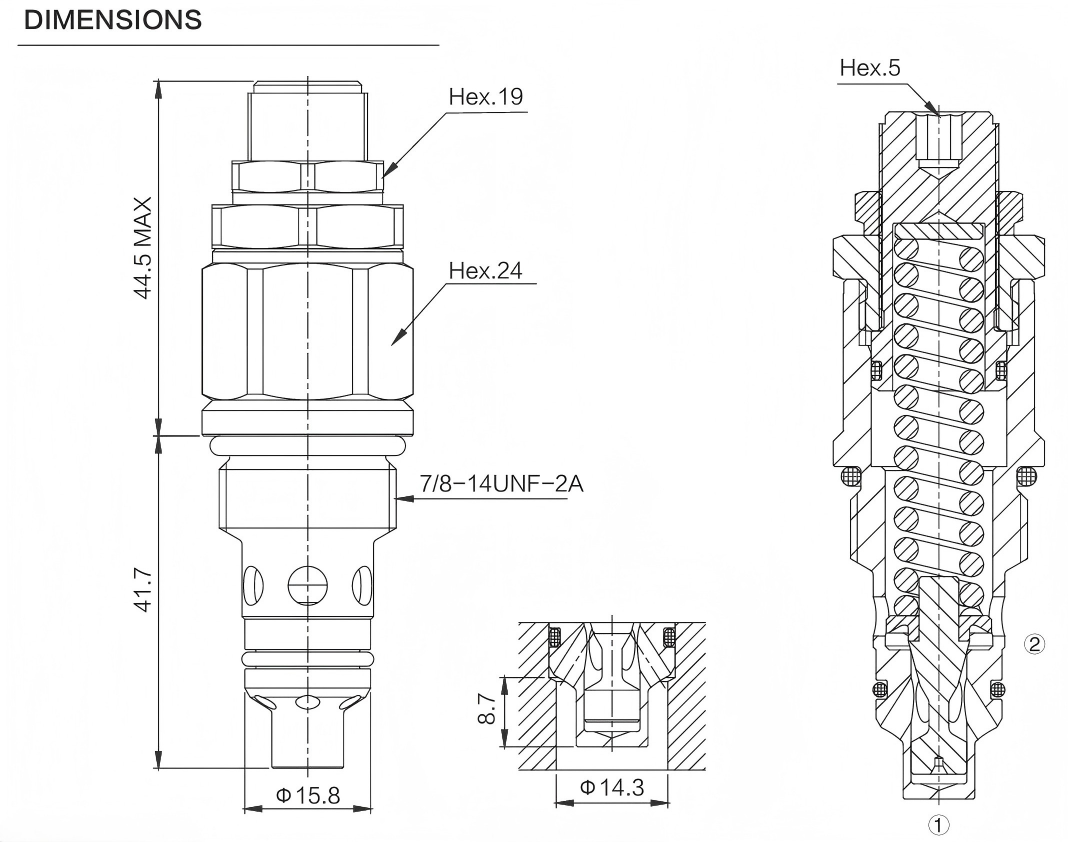

Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
