Hydraulic Symbol
Description
A solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve, intended to act as a blocking or load-holding device for low flow circuits.
Operation
When de-energized, the INSV08-B20 acts as a check valve, allowing flow from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the cartridge's poppet lifts to open the port 2 to port 1 flow path. In this mode, flow from port 1 to port 2 is severely restricted. If this path is required, see model INSV08-22.
Technical Data
| Operating Pressure | 207 bar / 3000 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-2E |
| Internal Leakage | 0.15 cc/minute (3 drops/minute) max. at 207 bar / 3000 psi |
| Temperature | -40°C to 120°C with standard Buna seals |

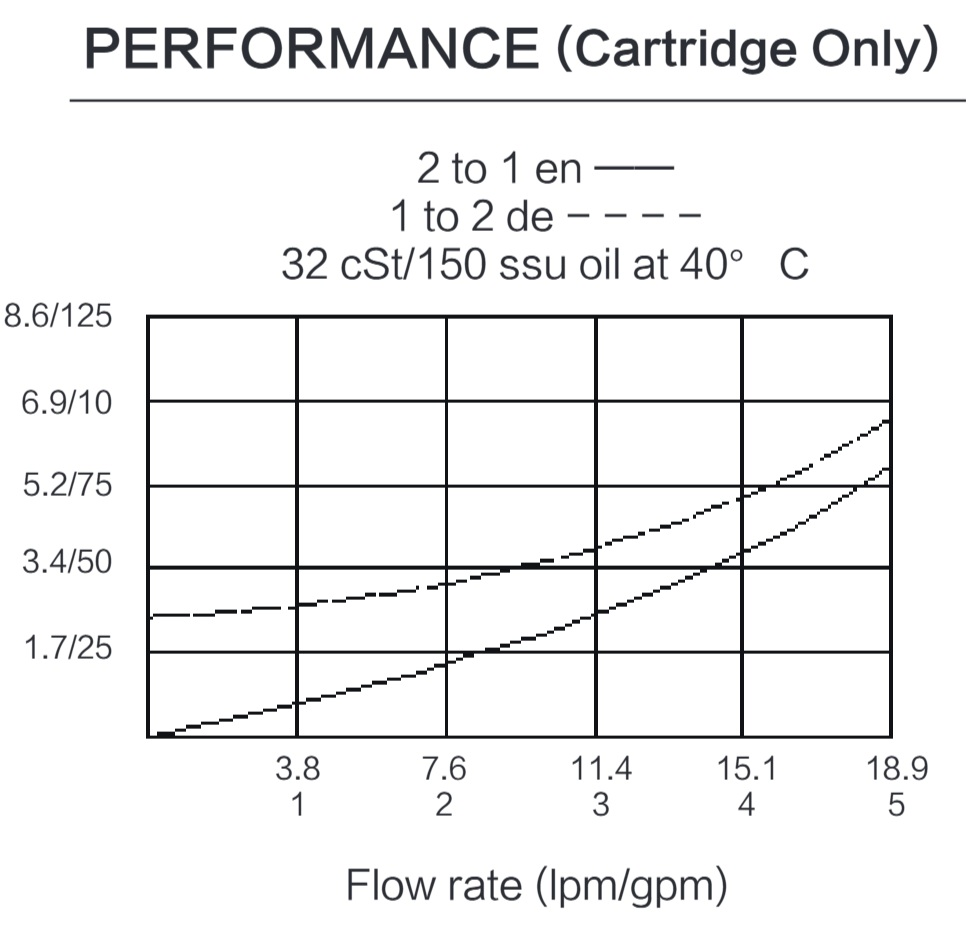

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

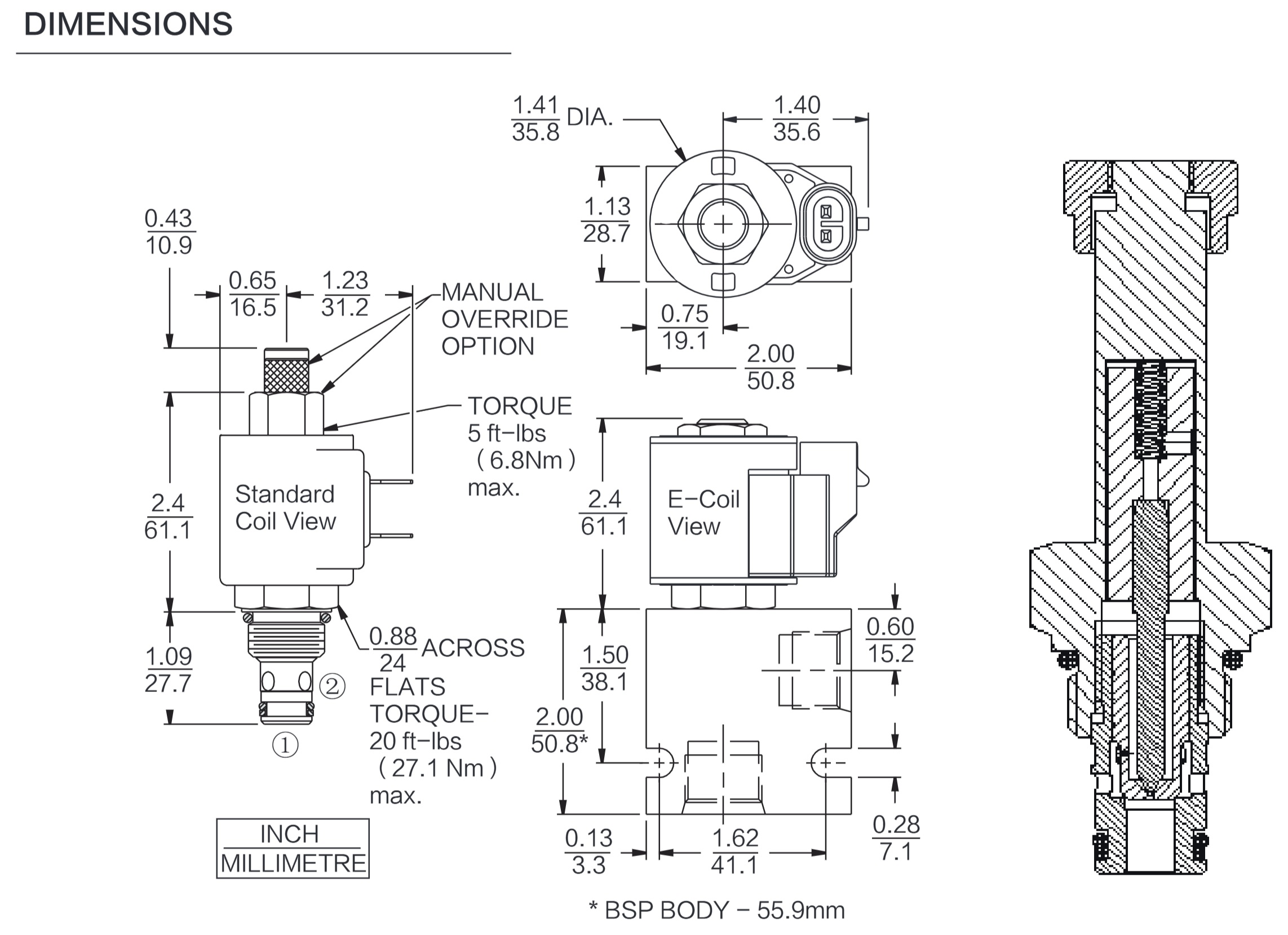

Dimensions
Dimension drawing is provided for installation and cavity review.

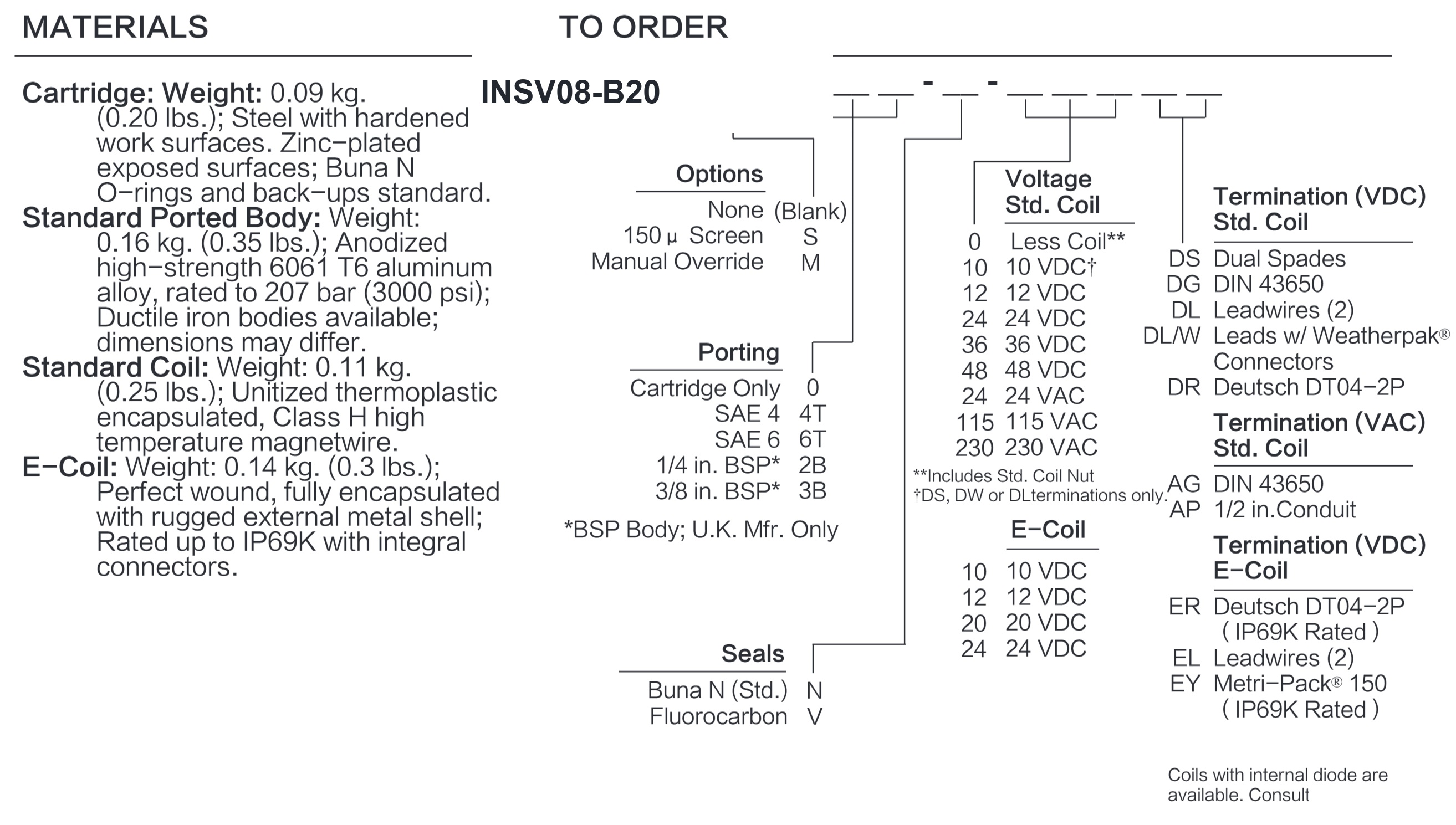

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
