Hydraulic Symbol
Description
A solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve, with either 'J " or "Y " type manual override standard. This valve is intended as a blocking or load holding device for low flow circuits having pull-only manual override requirements for handles or cable linkage.
Operation
Technical Data Pending
Technical Data
| Operating Pressure | 207 bar (3000 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-2E |
| Internal Leakage | 0.15 cc / minute (3 drops / minute) max. at 207 bar (3000 psi) |
| Temperature | Technical Data Pending |
Performance Curve

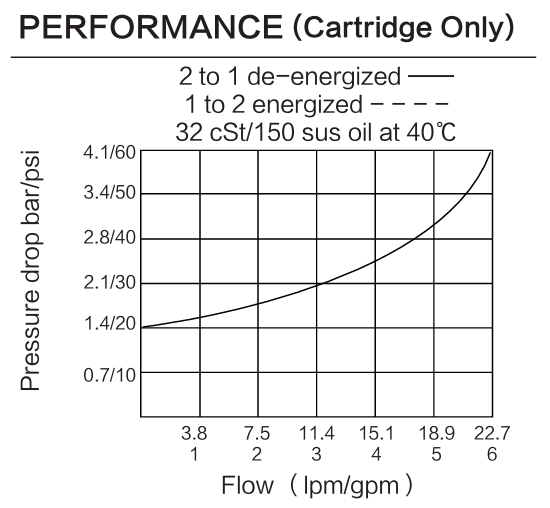

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

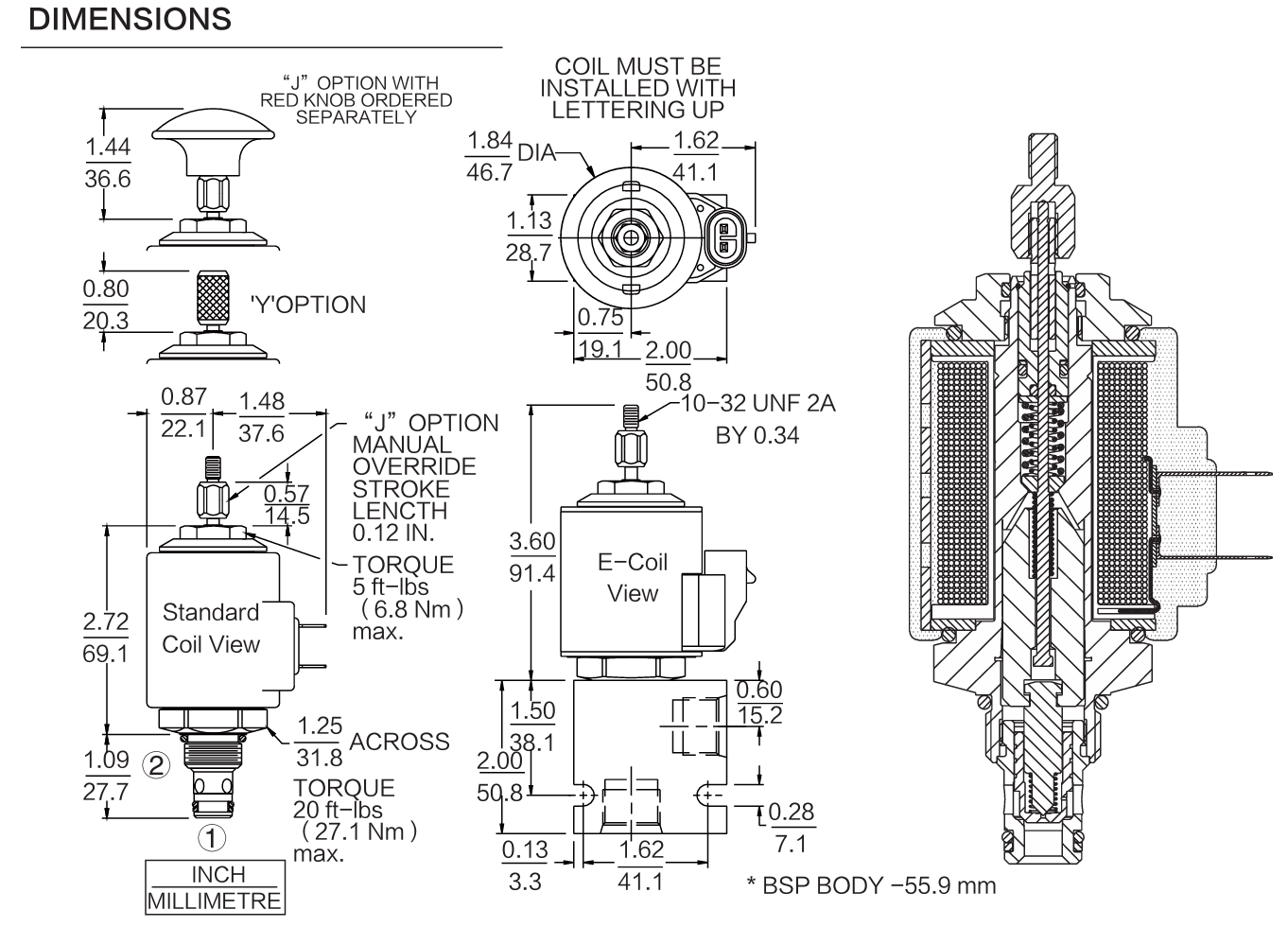

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
