Hydraulic Symbol
Description
A solenoid-operated, two-position, three-way, bi-directional blocking, screw-in hydraulic cartridge valve. lt is designed for low leakage in load-holding applications.
Operation
When de-energized, the INSV38-38 blocks OW from port 3 to port 2 or from port 2 to port 3.When energized, OW is blocked from port 2 to port 1 or from port 1 to port 2 ．
Technical Data
| Operating Pressure | 207 bar (3000 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-3A |
| Internal Leakage | 0.25 cc / minute (5 drops / minute) at 207 bar (3000 psi) |
| Temperature | Technical Data Pending |
Performance Curve

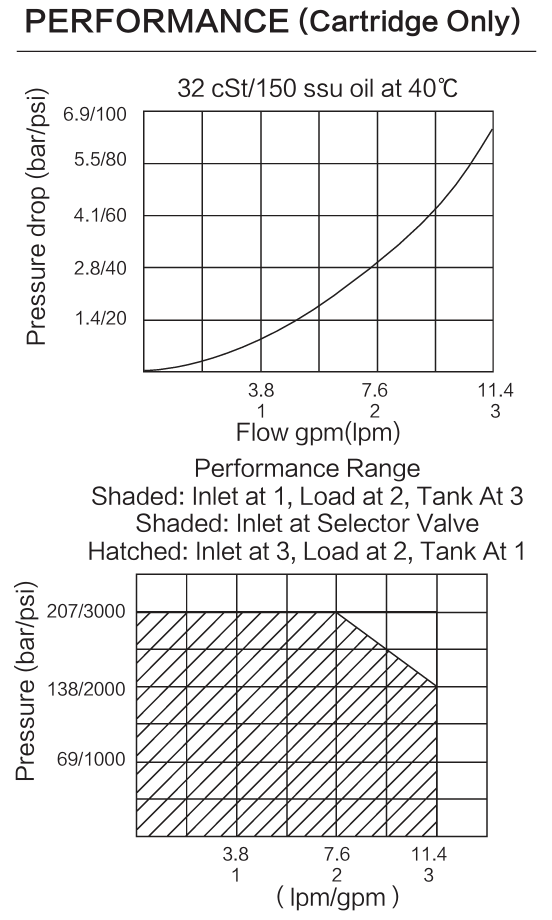

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

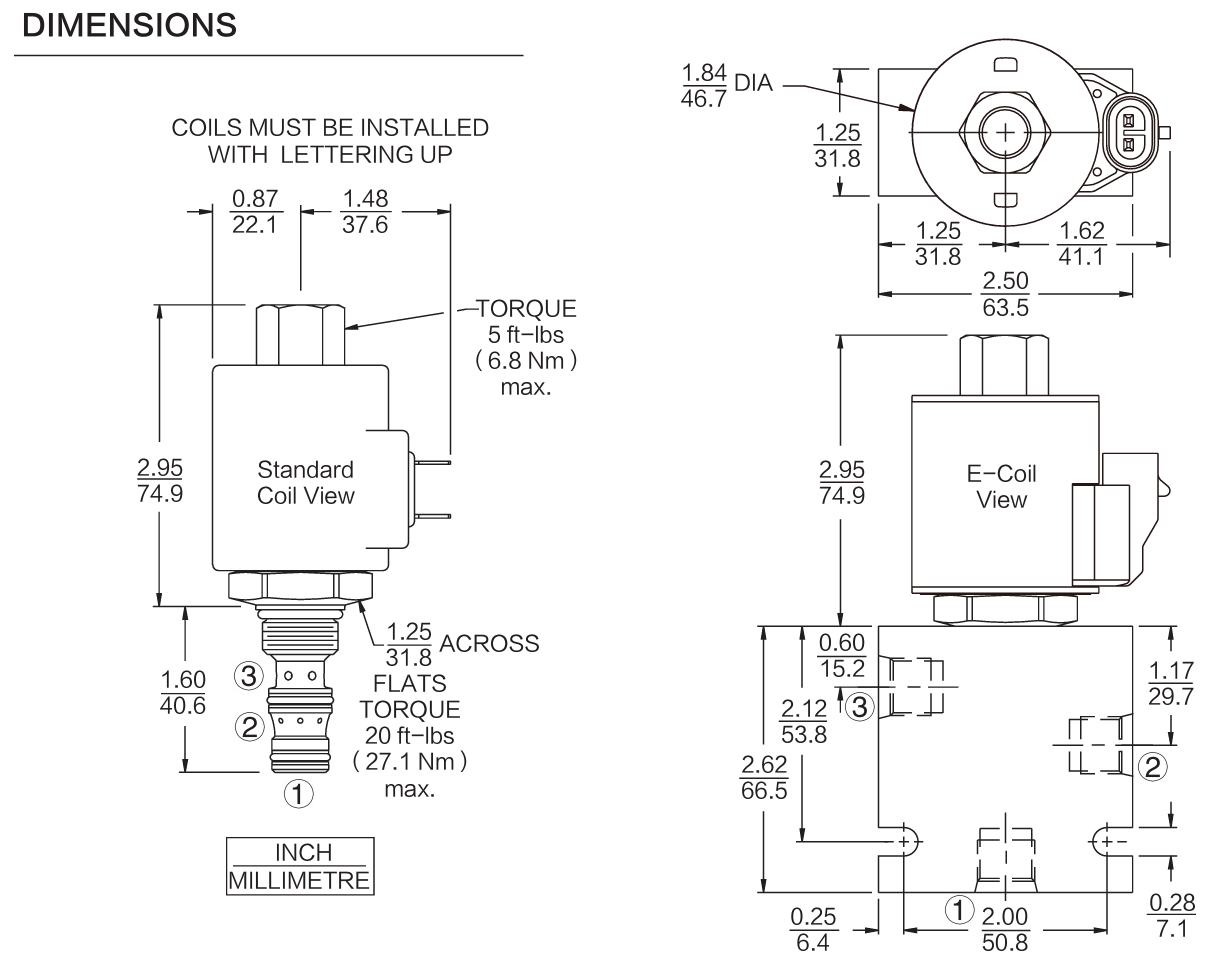

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

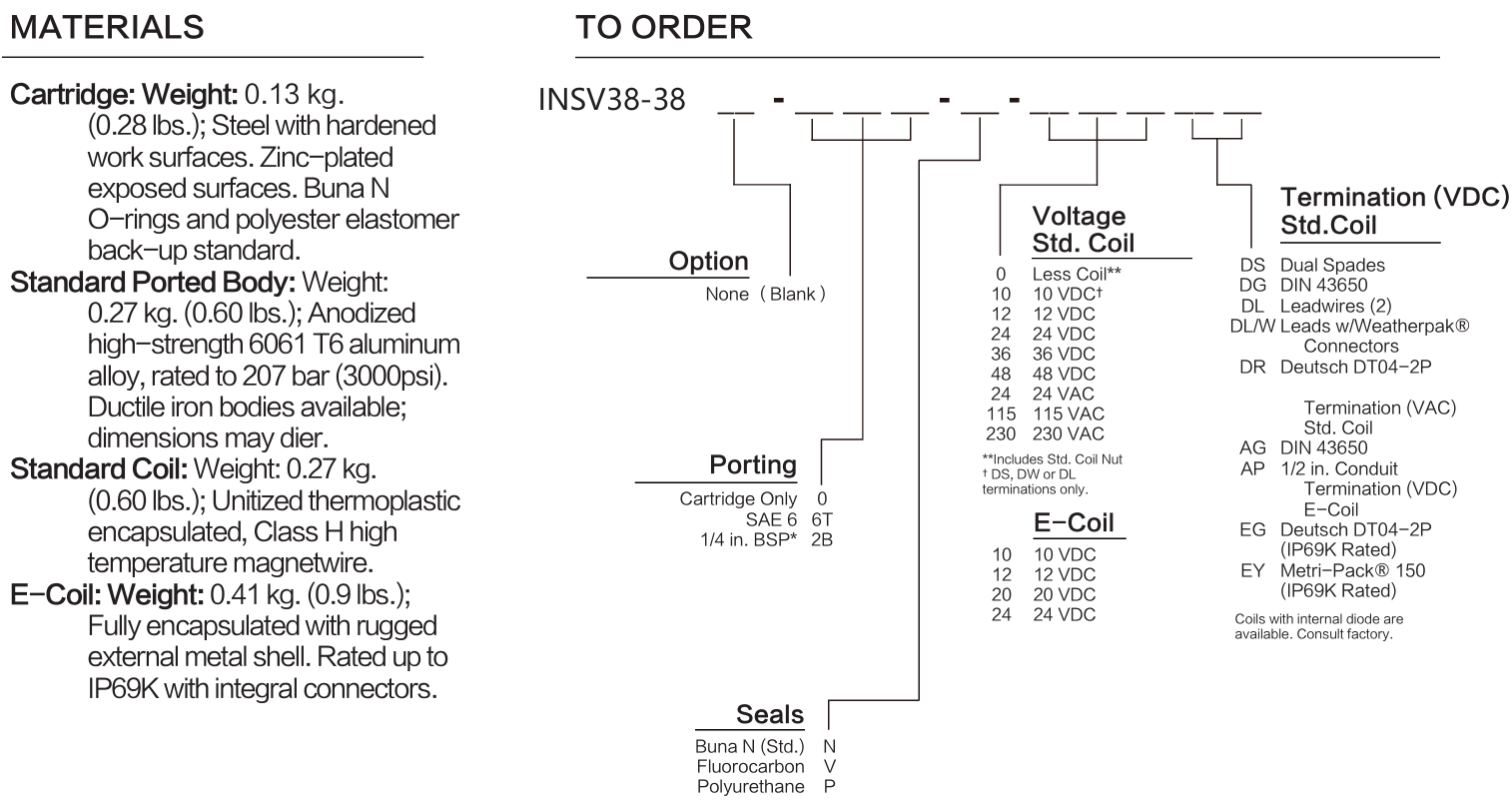

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
