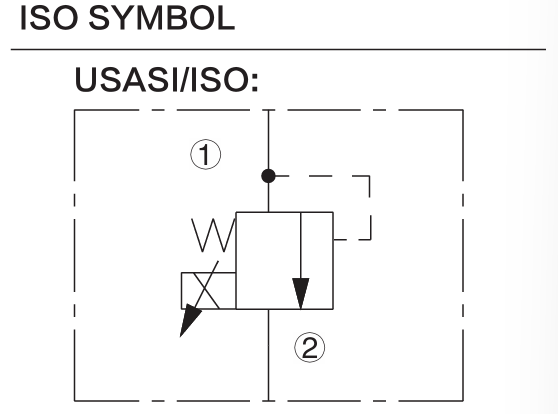

Hydraulic Symbol
Description
A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for three-way circuits requiring remote pilot actuation.
Operation
The valve blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to open the pilot section by offsetting the electrically induced solenoid force. With no current applied to the solenoid, the valve will relieve at approximately 100 psi. The optional manual override allows the valve to be set when the electric supply is lost. The manual setting is added to the electric setting. To prevent the system from being over pressurized, the manual override should always be disengaged prior to applying power to the coil.
Technical Data
| Operating Pressure | 241 bar / 3500 psi |
|---|---|
| Flow | Rated Flow: 94.6 lpm (25 gpm), ΔP=13.1 bar (190 psi), cartridge only, port 1 to port 2 coil de-energized |
| Cavity | T10-2B |
| Internal Leakage | Technical Data Pending |
| Temperature | -40°C to 100°C (-40°F to 212°F) with standard Buna N seals |
Performance Curve

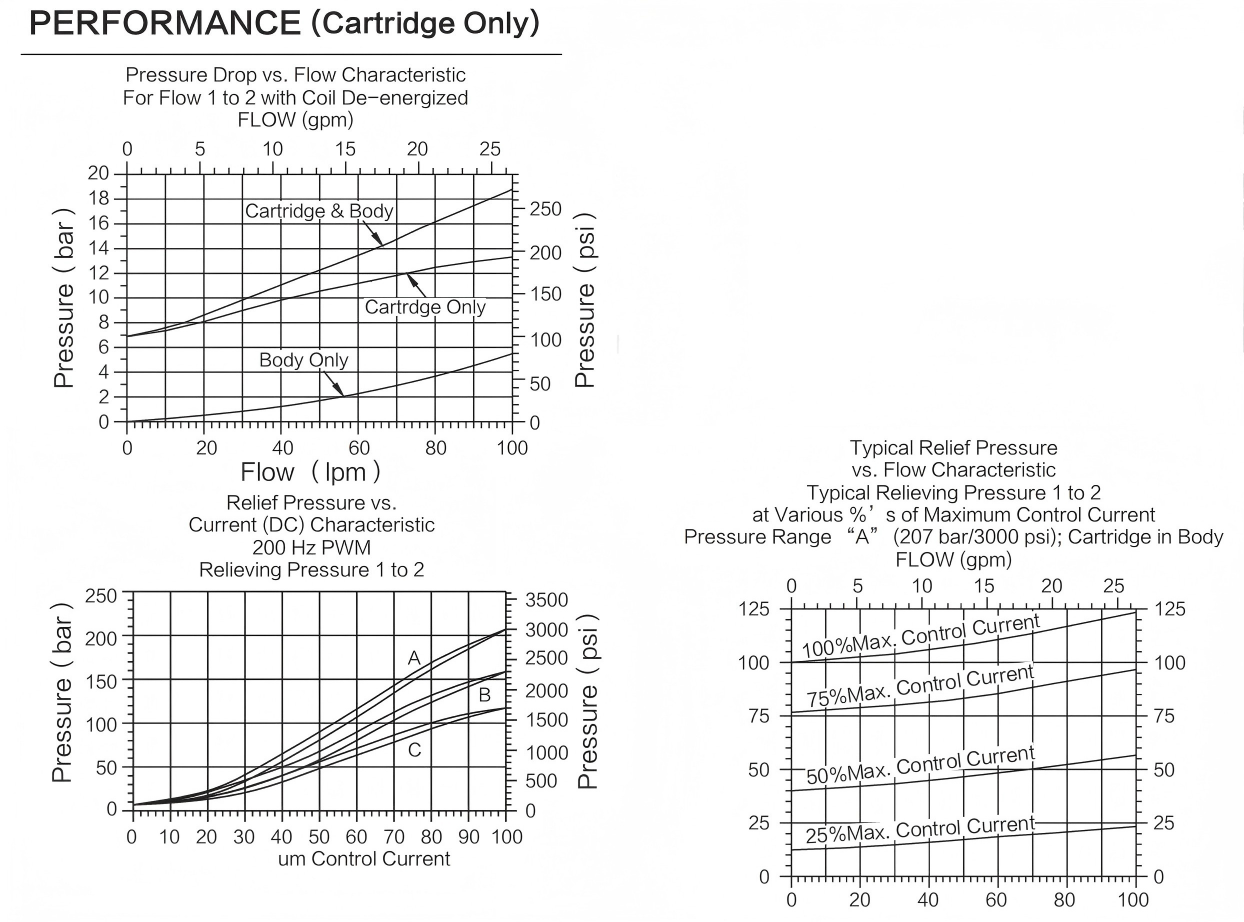

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

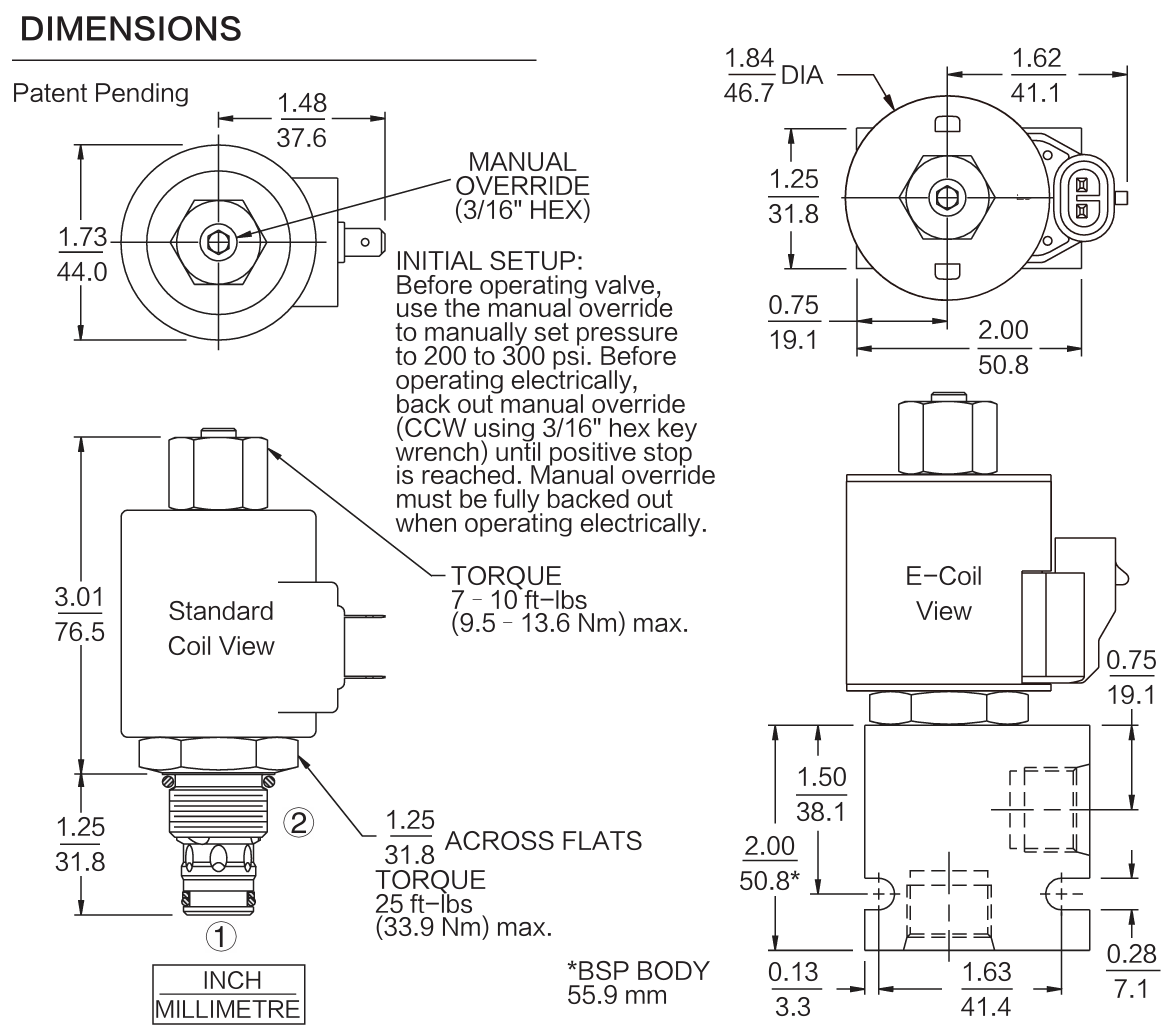

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
