Hydraulic Symbol
Description
A screw-in, cartridge-style, remote sequence, pilot unloading valve, with optional fixed "unload/reload" pressure ratios for use in accumulator-type hydraulic systems.
Operation
In its steady state, the INUP10-30 blocks flow from port 2 to port 3. On attainment of a pre-determined pressure at port 1, the spool shifts to allow flow from port 2 to port 3. Since the spring chamber is vented at port 3, back pressure at port 3 will directly (1:1) affect the valve setting. If pressure at port 1 drops to a level below the ratio-established reload value, the valve will close, blocking flow from port 2 to port 3.
Technical Data
| Operating Pressure | 207 bar (3000 psi) |
|---|---|
| Flow | 4 lpm (1 gpm) |
| Cavity | T10-3A |
| Temperature | -40°C ~ 120°C with Buna N seals |

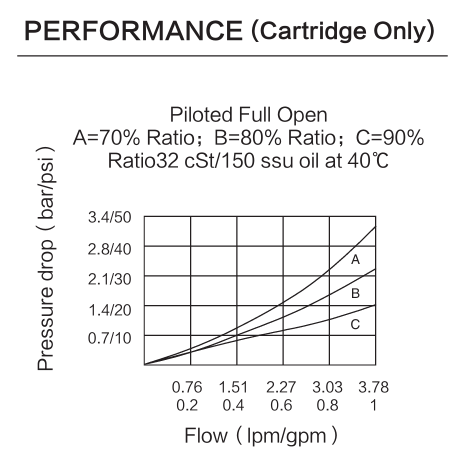

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

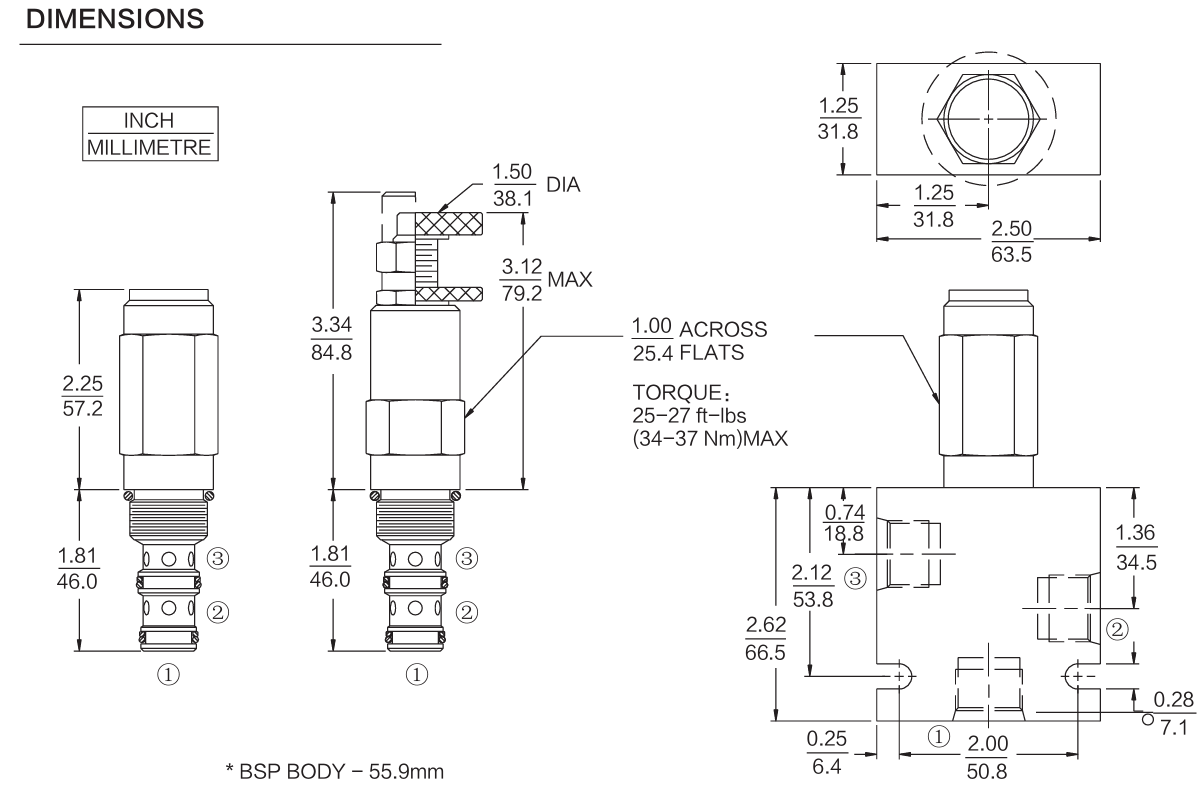

Dimensions
Dimension drawing is provided for installation and cavity review.

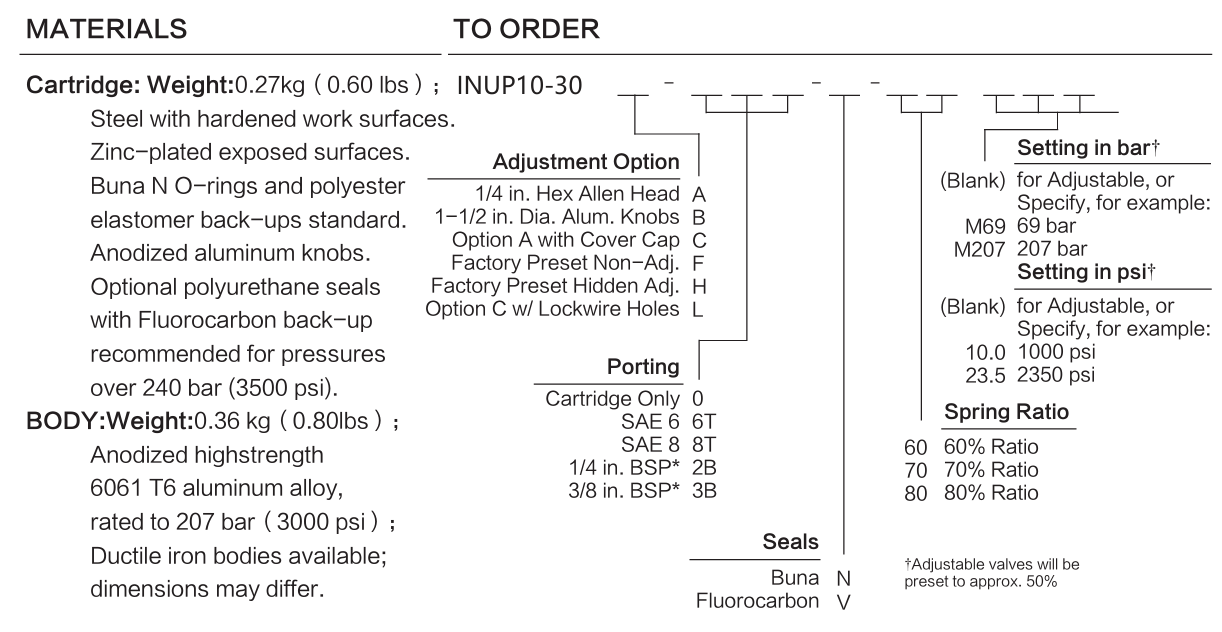

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
