Hydraulic Symbol
Description
A screw-in, cartridge-style, direct-acting, poppet-type, hydraulic relief valve intended for use as a pressure limiting device for common hydraulic circuit protection.
Operation
The INYF08-09H blocks flow from port 1 to port 2 until sufficient pressure is present at port 2 to force the poppet from its seat.
Technical Data
| Operating Pressure | 350 bar (5000 psi) |
|---|---|
| Flow | See performance chart |
| Cavity | T12-2G |
| Internal Leakage | 30 cc/minute max. to 75% - 80% of nominal setting |
| Temperature | -40°C to 120°C |

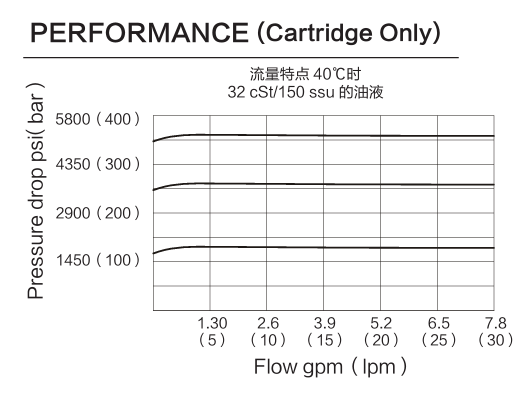

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

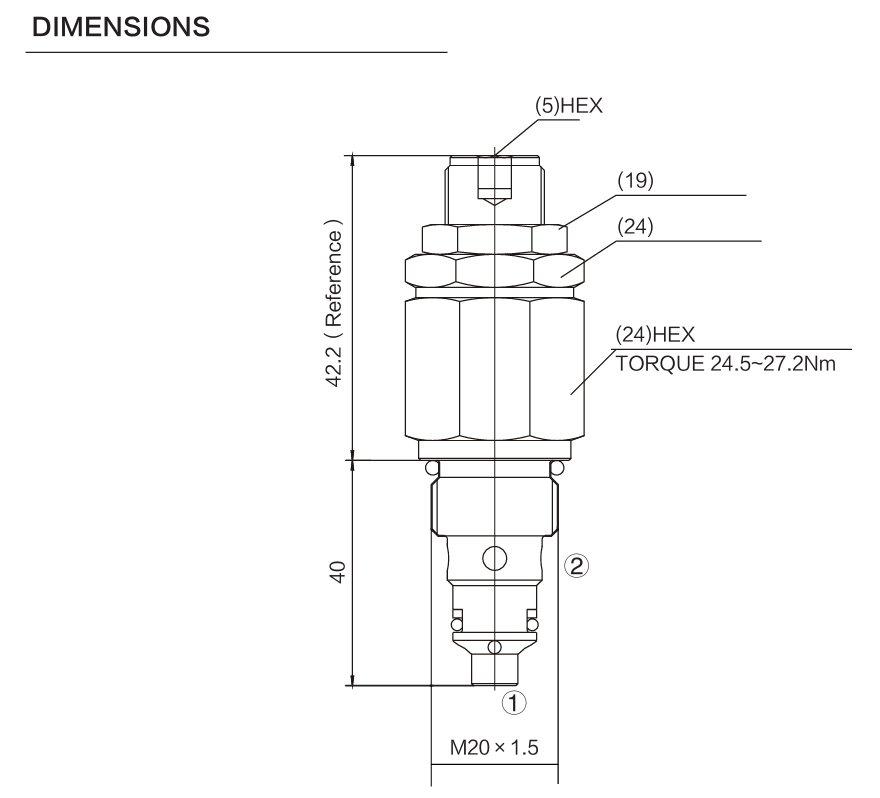

Dimensions
Dimension drawing is provided for installation and cavity review.

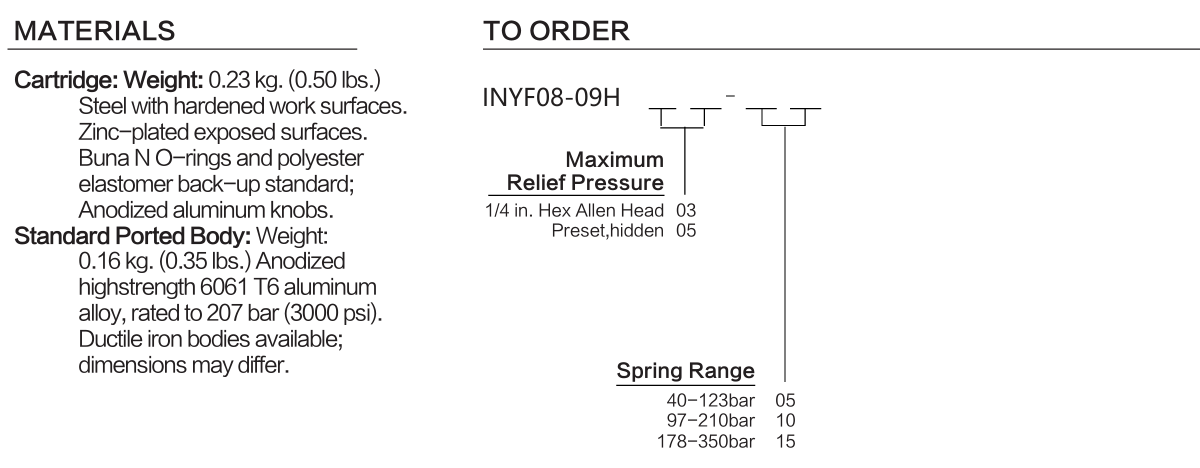

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
