Counterbalance Valves

Single & Dual Counterbalance Valves

Selected single and dual counterbalance valve models are shown below. Technical data must be confirmed from each model's own datasheet.

Model Framework

Available Model List

Technical specifications are shown from each model's own datasheet when available. Pending fields can be reviewed during quotation.

Need a counterbalance valve, cavity or replacement reference? Send your part number, load condition and working pressure for review.

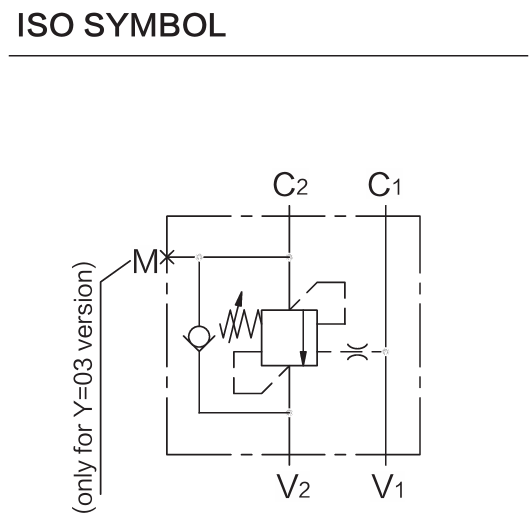

IN08.39.59XYZ

Cavity: Technical Data Pending
Pressure: Max. Operating Pressure: 350 bar; maximum setting = 350 bar; maximum recommended load pressure at maximum setting = 270 bar
Flow: See Performance Chart

IN04.52.25X58Z00

Cavity: T20-3AS
Pressure: Max setting pressure: 350 bar; maximum recommended load pressure at maximum setting = 270 bar
Flow: See Performance Chart

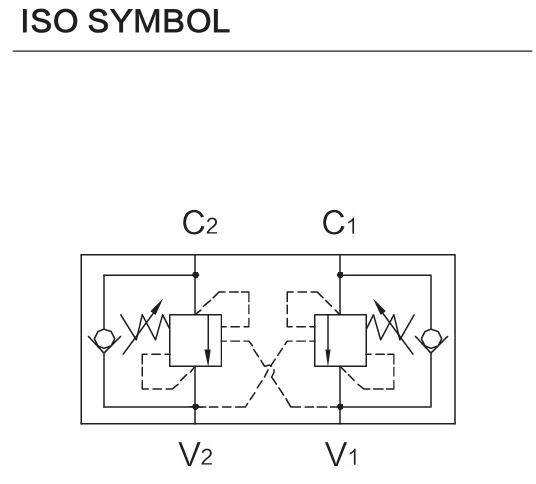

IN08.44.07XYZ

Cavity: Technical Data Pending
Pressure: Max. Operating Pressure: 350 bar; maximum setting = 350 bar; maximum recommended load pressure at maximum setting = 270 bar
Flow: See Performance Chart

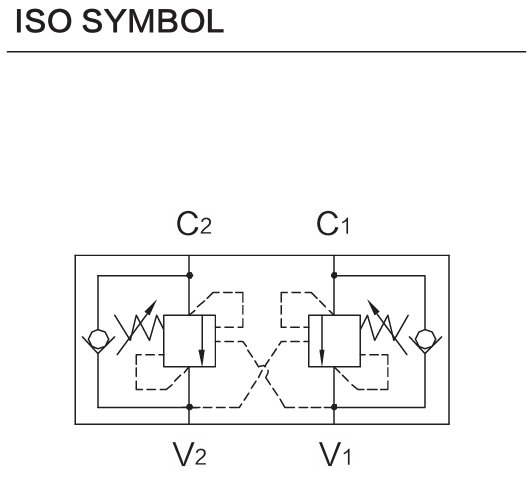

IN08.44.11XYZ

Cavity: Technical Data Pending
Pressure: Max. Operating Pressure: 350 bar; maximum setting = 350 bar; maximum recommended load pressure at maximum setting = 270 bar
Flow: See Performance Chart
